ArchiTilt Range

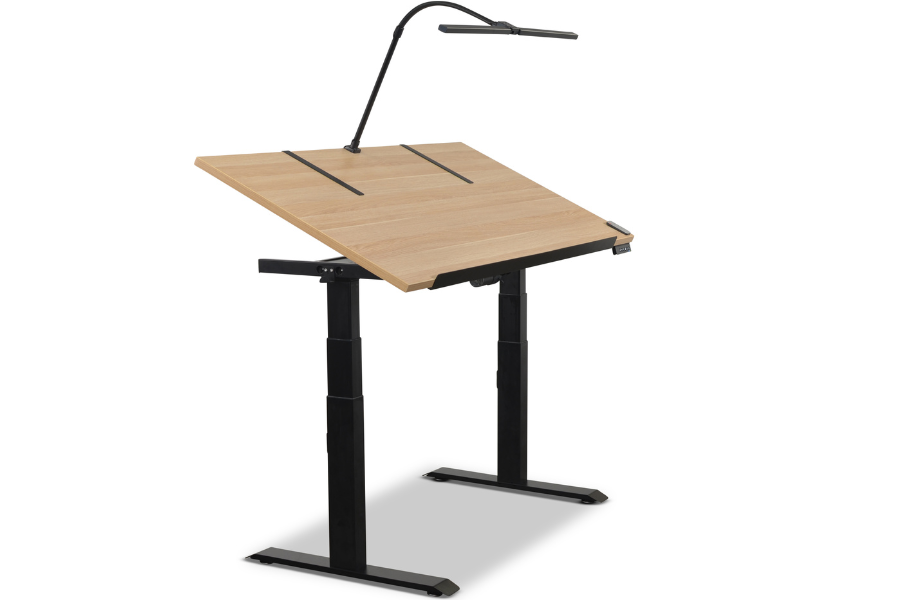

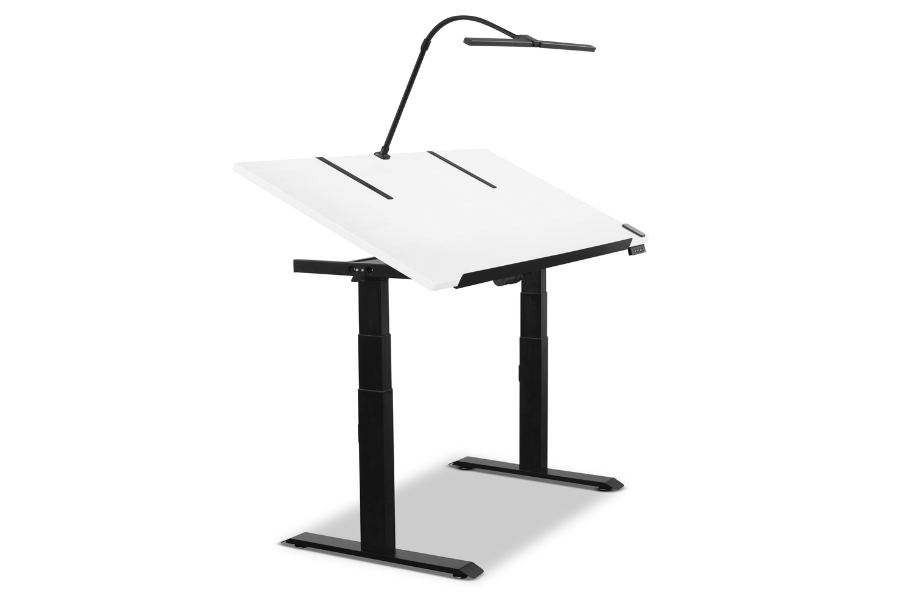

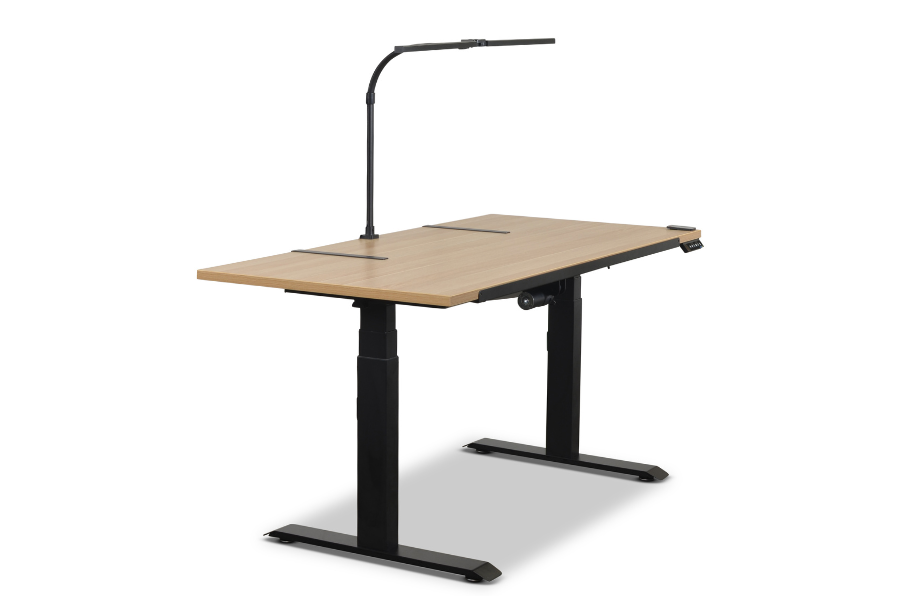

Introducing the Vertilift Architilt desk frame: an industry first, offering electric height and tilt adjustment with built-in cable ducting. With a lift capacity of 180kg and a height range of 700mm - 1170mm, it's perfect for drafting. The tilt range of 0-45 degrees, reversible paper retainer, and magnet paper clips provide versatility. Equipped with dual internally mounted motors, thermal overheat protection, and anti-collision features for safety.

The desk frame includes heavy-duty magnets and a paper-stop rail for drafting, steel paper clips for securing plans/documents, and a cable cover plate for protection. It's also CMS compatible with dual/quad GPO mounting provision and compatible with the Desk Lamp (VLAMP).

• Lift capacity 180kg evenly distributed
• Height range 700mm - 1170mm
• Tilt range 0-45 degrees (electronic tilt mechanism)
• Frame suits tops 750 - 900m deep
• Architilt15: frame suits tops 1200 to 1500mm (fixed length)
• Architilt18: frame suits tops 1650 to 1800mm (fixed length)
• 700mm long feet standard (600mm feet available)
• Dual internally mounted motors inside 3-stage column legs
• Thermal overheat protection
• Anti Collision with soft start and stop

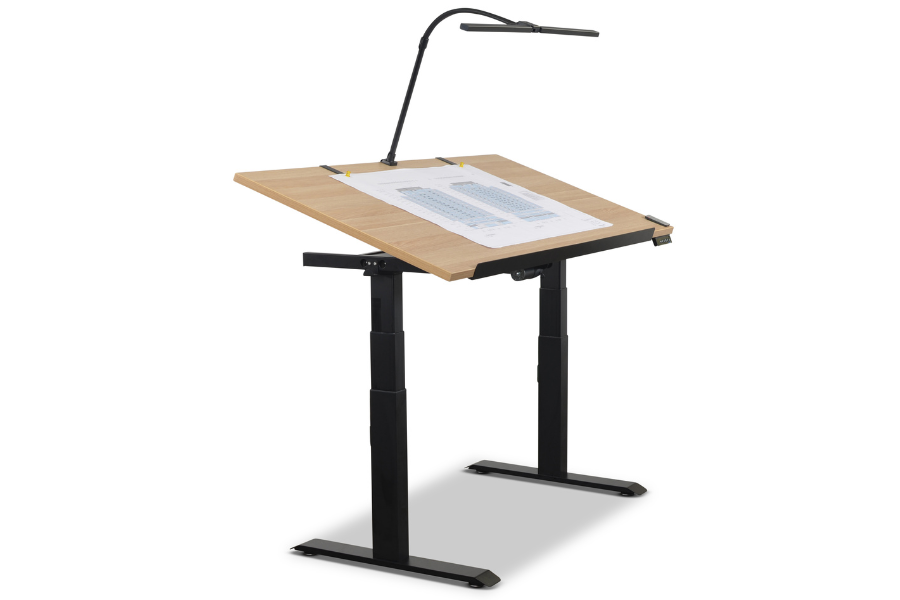

• Heavy duty magnets and paper-stop rail (1200mmW) for drafting position
• Steel paper clips to secure plans/documents
• Cable cover plate to protect wiring components
• CMS Dual/Quad GPO mounting provision included
• Compatible with Desk Lamp (VLAMP)
